Accumed AQUA IP68 Smart Card Reader Medical/Industrial Washable Keyboard

AccuMed AQUA Smart Card - USB 105 Key Antibacterial & Fully Washable IP65 Medical / Industrial / Clinical Keyboard with Smart Card Reader

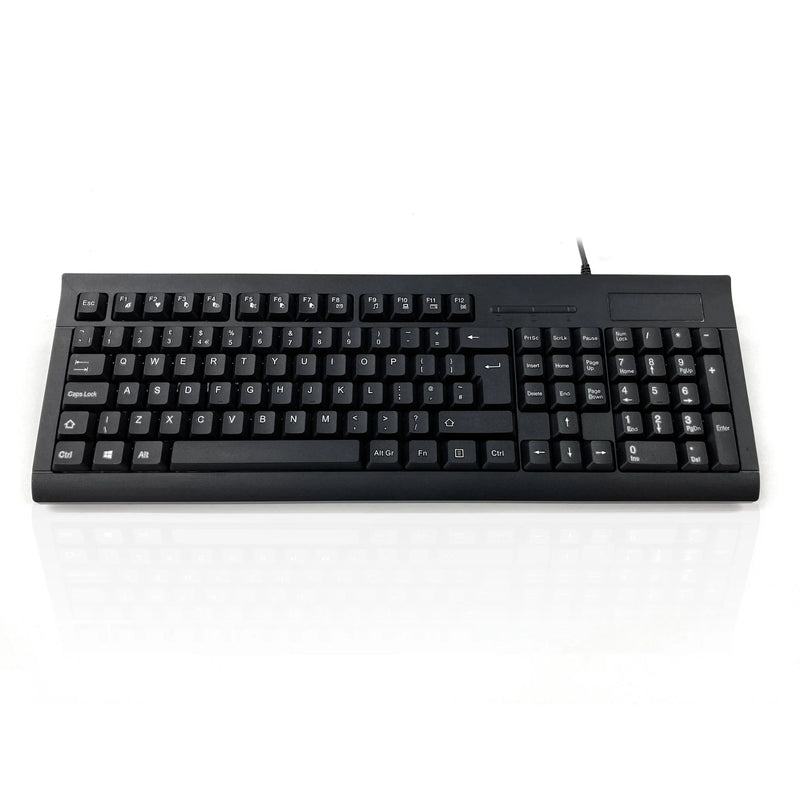

The Accuratus AccuMed AQUA smart card keyboard is similar to a standard keyboard in looks but has sealed internal components so it can be fully washed and cleansed, ideal for a medical / dental / clinical environment or even in workplaces, schools and other environments that have requirements for infection control. The complete keyboard even has Antibacterial protection, designed to deactivate bacteria, virus, fungi and algae over time.

The AQUA smart card keyboard features an integrated smart card reader on the side for additional convenience and quick sign in. The AccuMed range of medical grade keyboards & mice are specifically designed for environments with strict hygienic requirements such as hospitals, doctors and food production areas.

Keyboard Features and Specifications

• USB ‘plug and play’ connection
• All in one USB interface for the Keyboard and Smart Card reader

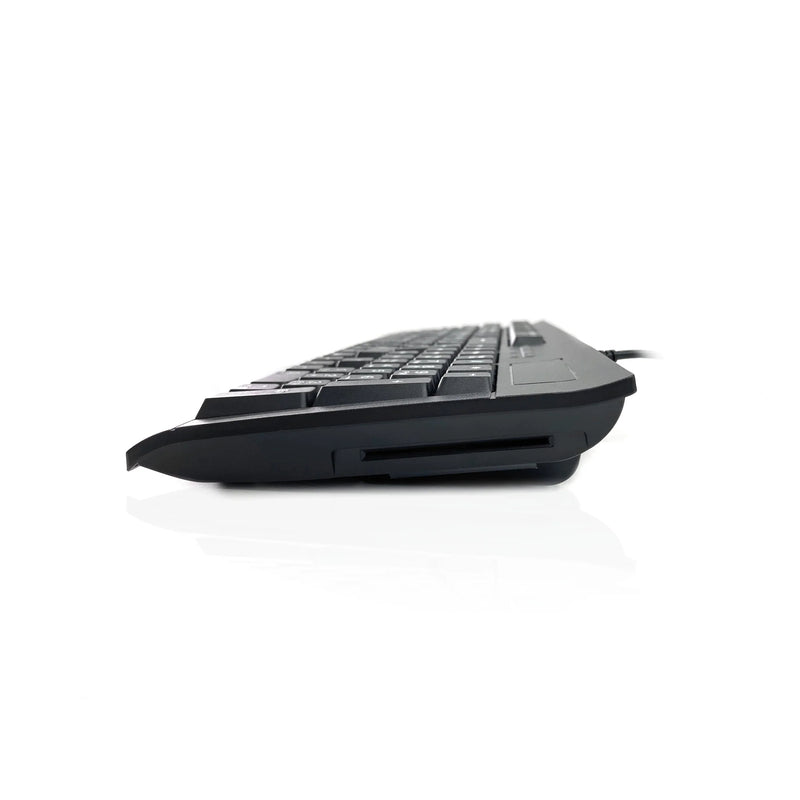

• Integrated Side Access Smart Card reader using Alcor Micro Smart Card Controller
• Standard plastic keyboard styling, but in a unique fully sealed IP68 design, 100% waterproof
• The complete keyboard has Antibacterial protection, designed to deactivate bacteria, virus, fungi and algae over time
• Compatible with all hospital disinfectants
• Black case and keys (other colours made on request)
• Mid height 19mm pitch(wide) keys with quality membrane key mechanism, offering 8M key
• strokes with an excellent tactile feeling
• Full UK English key layout with media keys (other language layouts available on request)
• High quality clear easy read laser etched key legends
• Fold out feet to allow for keyboard tilt
• Keyboard status LED's (Caps, Num, Scroll Lock)
• Brown box environment friendly packaging

Smart Card Reader Specifications

• EMV 4.0 Level 1 specification certified
• PBOC2.0 Level 1 certified
• Level 3 Compliant
• Supports USB 2.0 full speed, USB-IF certified
• Based on ISO7816 implementation
• Support PC Smart Card industry standard – PC/SC 2.0
• Support Microsoft Smart Card for Windows
• Meet Microsoft WHQL USB Smart Card Reader requirements
• Meet US Federal Information Processing Standards (FIPS) Publication 201
• requirements on smart card reader
• interoperability
• Compatible operating system:
  Windows XP/ 2000/ Vista/ Win7/Win8/ Win10, Linux Redhead 9、Ubuntu 8.04、Fedora Core 9 or later version

Smart Card Reader Features

• Support single slot
• Support T0, T1 protocol
• Support I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041 card and AT45DB041 card via external EEPROM
• Support ISO7816 Class A, B and C (5V/3V/1.8V) card
• Implemented as an USB full speed device with bulk transfer endpoint, Mass Storage endpoint
• Built-in PLL for USB and Smart Card clocks requirement
• Support EEPROM for USB descriptors customization (PID/VID/ iManufacturer/iProduct/Serial Number), Direct Web Page Link, and accessing memory card module.
• EEPROM programmable via USB interface
• Support software update for memory card module
• Support short APDU and extended APDU
• Compatible with Microsoft USB-CCID driver
• Support remote wake up through inserting card/removing card
• Support USB selective suspend
• Support card power over current protection mechanism
• Built in resonator.
• Support USB LPM (Link Power Management) features.
• Embedded clock source.

Cleaning Instructions

The best practice for cleaning and disinfecting our keyboards and mice, including the cleaning frequency and method, depends on the specific use and conditions in your environment. We would recommend treating our products as you would treat any other high frequency touch surface in the same room.

The AccuMed Aqua Smart Card Keyboard can be washed as the keyboard can be fully submersed, sprayed or wiped with all standard hospital grade disinfectants and wipes, ideal for a regular deep clean or frequent wiping. If the keyboard is fully submersed, please allow the water to exit the keyboard and dry it before connecting it back to the computer.  Note. If the USB connector gets wet please completely dry this before inserting it back to a USB port.

Approved Disinfections

• Alcohol based
• Chlorine based,up to 100,000 ppm (10%) bleach content
• Formaldehyde based, up to 370,000 ppm (37%) formaldehyde content
• Glutaraldehyde based
• Oxidizing, such as Hydrogen Peroxide, up to 30,000 ppm (3%) content
• Phenol based
• Quaternary Ammonium, up to 20,000 ppm(2%) content

Sanitizing Recommendations

• Accelerated Hydrogen Peroxide (.02%-.05%)
• Alcohols (+60% isopropyl or ethyl alcohol)
• Bleach (1% bleach, 99% water)
• For Low Level Disinfecting
• Accelerated Hydrogen Peroxide (.02%-.05%)
• Quatemary Ammonia Compounds with alcohol(10%-20% in five minutes)
• • Bleach 500-5000 ppm

Keyboard Specialists Ltd (KBS) is an official distributor of the Accuratus / AccuMed range. For specific requirements or more information, please call us on 0203 474 0234.
