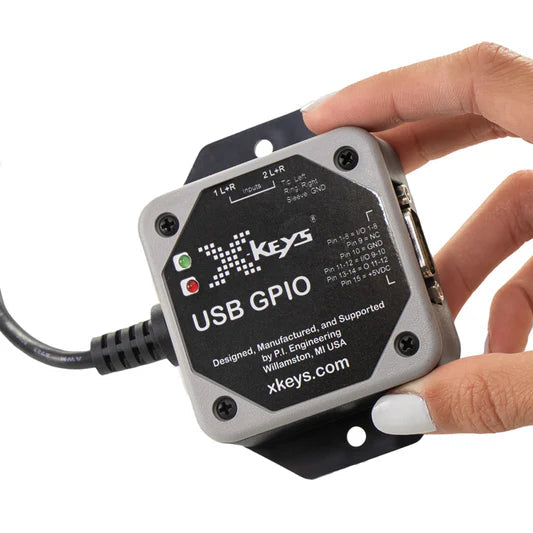

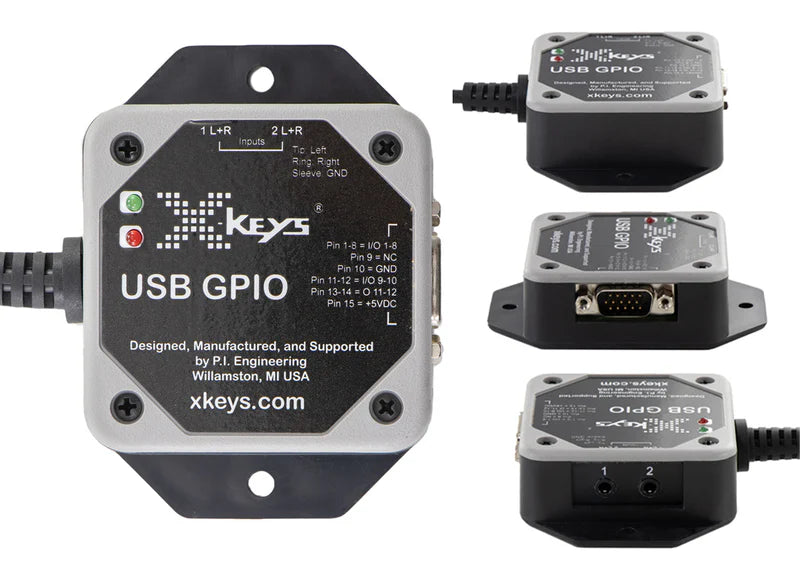

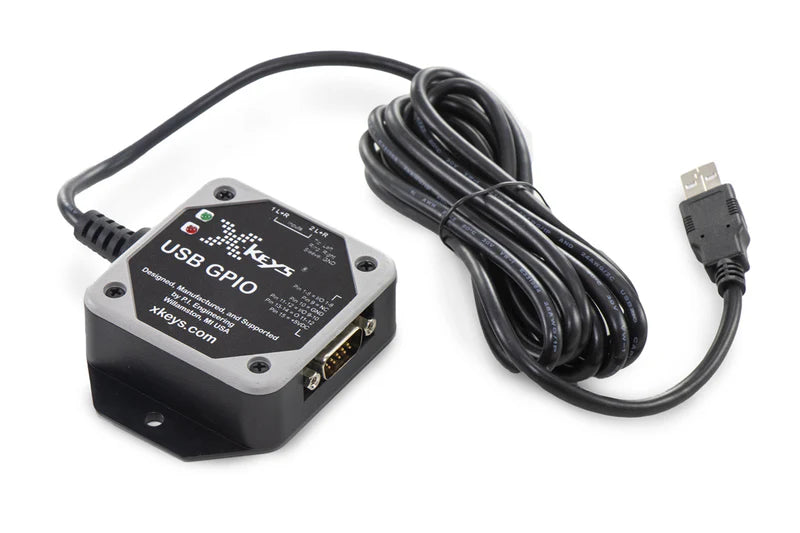

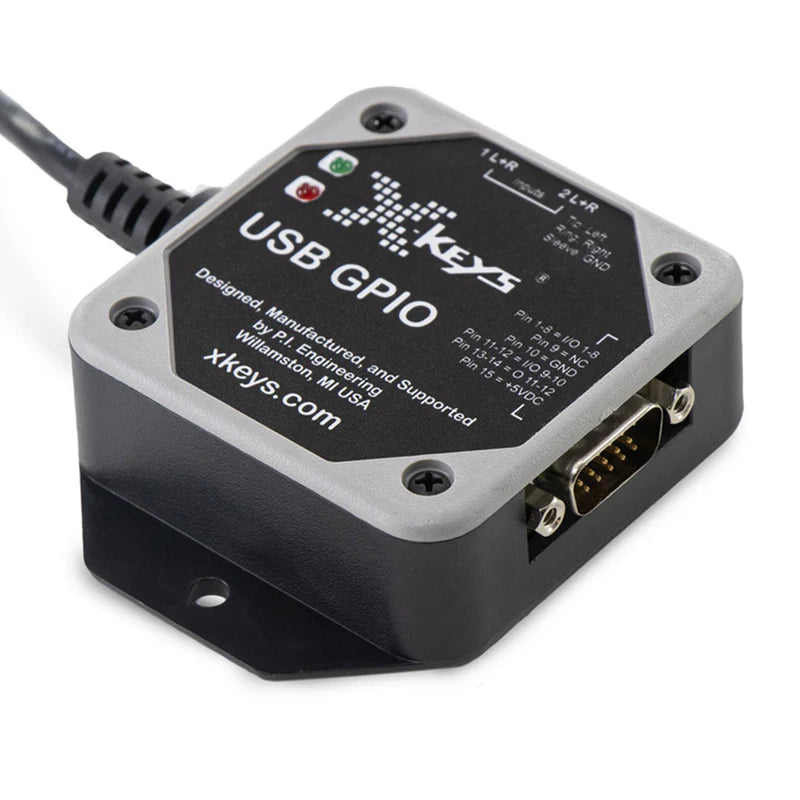

X-keys XK-1502 USB GPIO (General Purpose Input Output)
SKU: XK-1502-UHIO14-R
The X-Keys USB GPIO unit features 10 configurable ports which can be 5-volt outputs, short-to-ground inputs, or 5-volt pull-down inputs. It also has two more dedicated 5-volt outputs and four more dedicated short-to-ground inputs.
The ten configurable ports are set with a free Windows utility we provide via download (link). All inputs and are programmable and can send a wide range of USB keyboard, mouse, game controller, multi-media and other proprietary USB HID messages. All outputs can be triggered via USB HID with support from our free SDKs for Windows, OS X, Linux, and Android.

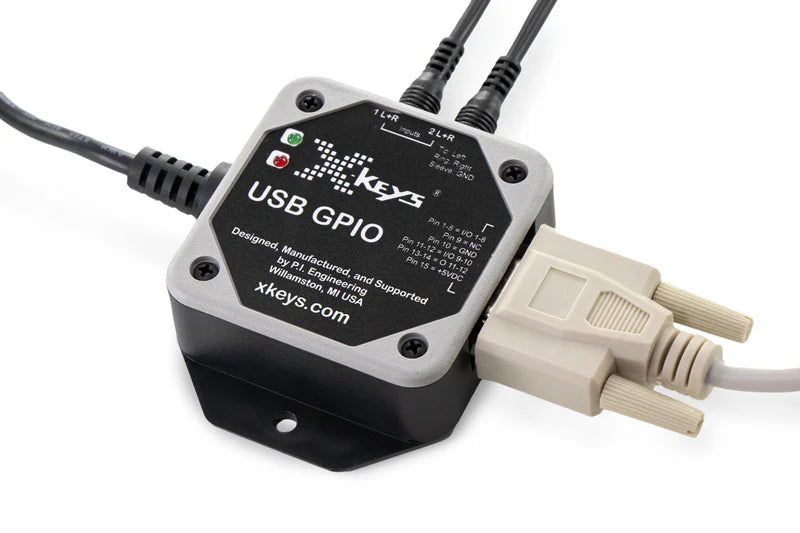

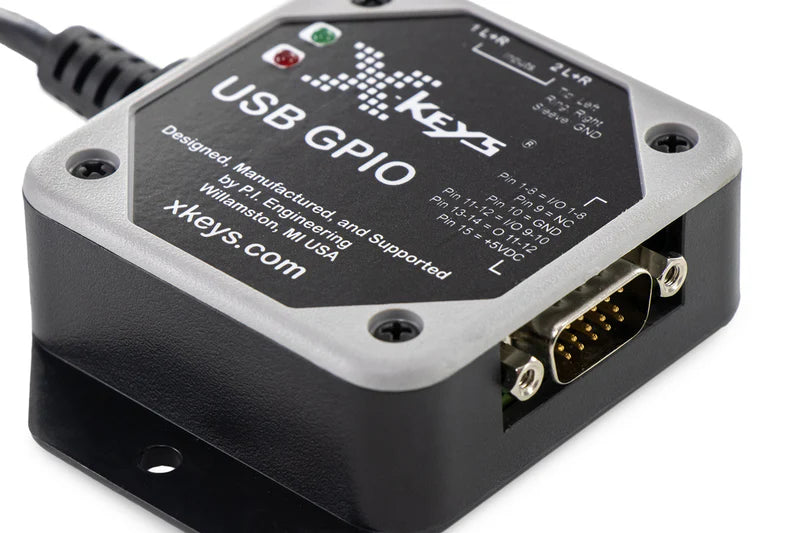

A standard HD15 male connector provides a reliable connection to all configurable I/O ports and dedicated outputs. Two 3.5 mm TRS (Tip-Ring-Sleeve, AKA Stereo) ports provide connection to the four dedicated short-to-ground inputs to facilitate the addition of external switches.
- Up to 10 configurable Input/Output Ports
- HID keyboard, mouse, and joystick hardware emulation
- Free SDKs for Windows, Linux, and Android
- Internal memory for hardware, resident macros for OS independent support
Keyboard Specialists (KBS) are officially the UK distributor of X-Keys products and we take pride when dealing with all X-Keys enquiries. We keep large amounts of stock of all products and take care when packaging and dispatching to ensure these products arrive in pristine condition. KBS will happily work on any custom X-Keys projects and supports you through the entire ordering process, working quickly and efficiently on any enquiry. Even after-purchase support is available if you need any help with installing or setting up your X-Keys.
Technical Specification
- Approvals:
- Warranty: 1 Year Manufacturers
