CKS X17 Rugged Industrial Display Touchscreen Monitor/Panel PC
SKU: CKS-X17PL_U_A
The CKS X17 Product Range offers high-performance, low-power industrial computing in an 17.0" form factor, with flexible configurations as a Panel PC, Thin Client, or Industrial Monitor.
Its IP69K front seal ensures protection against dust ingress and high temperature, high-pressure water, making it an ideal choice for sanitary environments such as in the Food Industry.
For specifications and custom requirements, CKS can also provide tailored solutions.
Choose from a single Monitor or a PC Panel (with a built-in Intel® Core™ i5-1235U, Intel® N100, or Celeron® J6412 Processor client computer).
Ideal for all industrial, rugged applications, Keyboard Specialists Ltd (KBS) would recommend the CKS range for all controls.
Contact a member of the KBS team on 0203 474 0234 for more information.
Technical Specification
- Approvals: FC, CE, IP, NEMA, ROHS,
- Active Display Area: 337.920(H) x 270.336(V) mm
- Cable Length: Available in 2 or 5 metres length.
- Connections: USB and RS232 (IP67 Metal locking connections available for PC's).
- Connector Sealing Options: K (IP66) Cased – Bottom Outlet - EPG Kit, T (IP67) Cased – Bottom Outlet - Metal Locking and Z (IP22) Bezel – Bottom Outlet Connections.
- Datasheet: CKS-X17.pdf

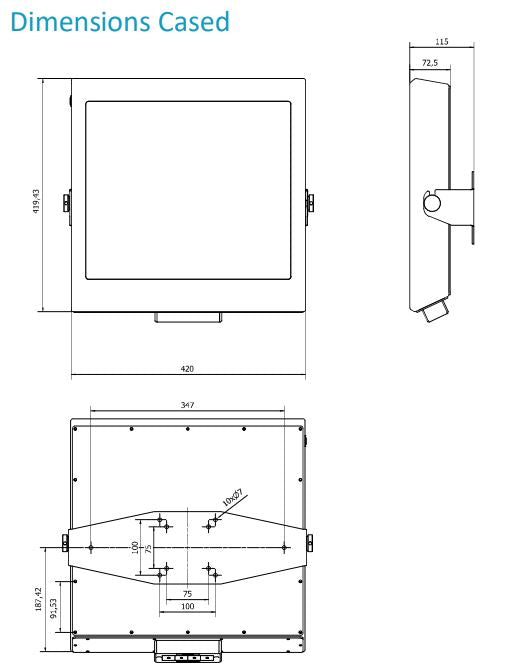

- Dimensions: 420 (W) x 419.43 (H) x 72.5 (D) cased
- Integrated Peripherals: Touchpad
- IP Rating : IP66 / IP67 / IP69
- Material: Stainless Steel (304) front face / Anodised Aluminium rear face
- Mounting: Cased or Bezel
- Special Features: Fully customisable 17.0” Industrial Panel PC / Thin Client / Monitor
- Warranty: 3 Year RTB Warranty - Extendable up to 5 Years
- Weight: 10,000 g
- Download Datasheet
